Description

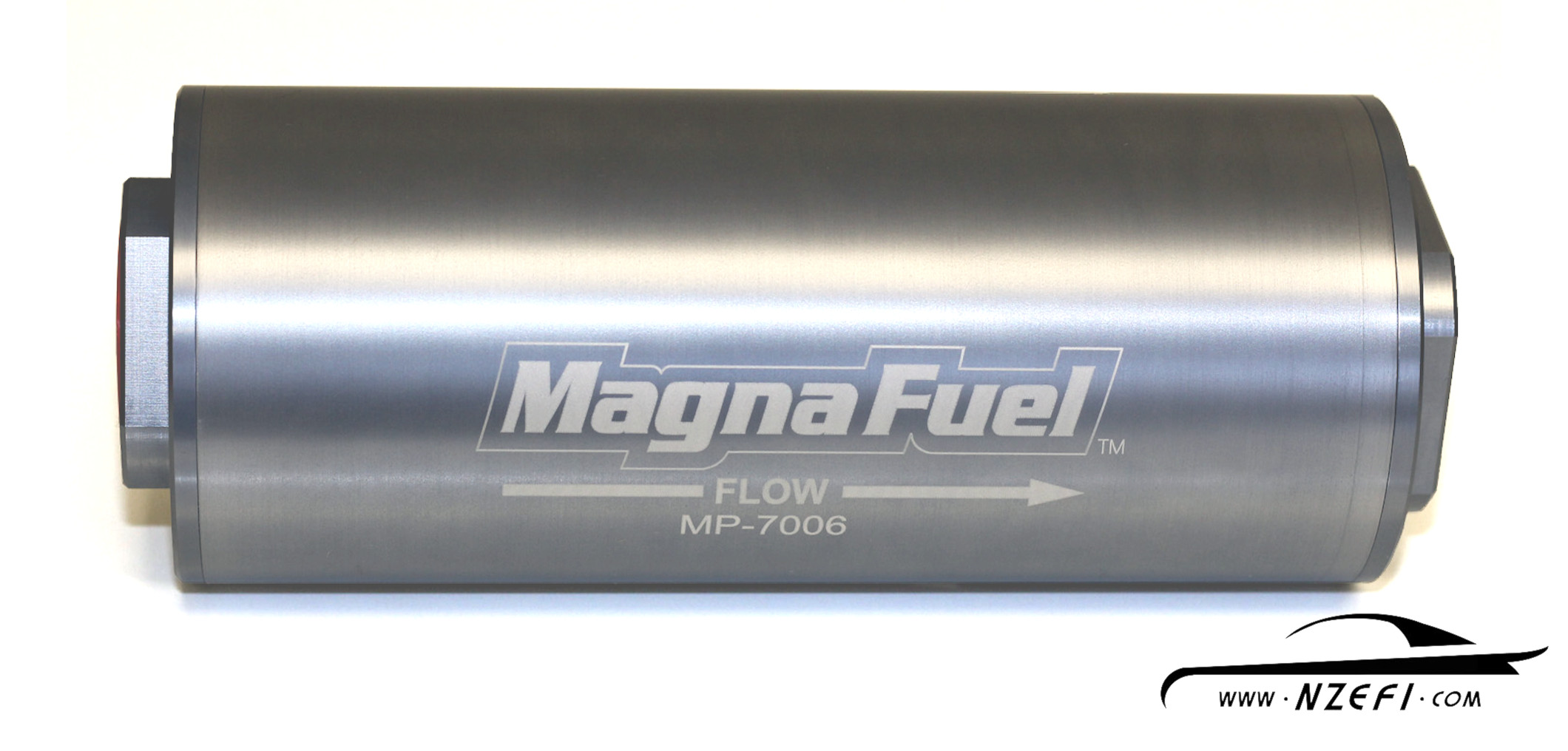

MagnaFuel EFI Fuel Pre-Filter with 150 Micron (Very Coarse) Nylon Element and Large Body
This 150 micron (very coarse) fuel pre-filter is suitable for mounting before an EFI fuel pump. If a lift pump is used, this filter can be mounted before the lift pump as well. This ensures that any large particles from the fuel tank do not enter either fuel pump.
A fine (~10 micron) filter should also be used just before the fuel rail along with filter baskets inside the injectors.
Body and end caps are made from anodised aluminium, providing excellent corrosion prevention, strength and light weight.
Removable and replaceable filter elements. One element is supplied with this filter and replacement elements are available separately.
Ultra high flow for high powered applications and compatible with gasoline and ethanol blend fuels.
Dimensions:
- Outside Diameter = 63.5mm
- Length = 165mm
- Inlet and outlet fitting size = AN-12 thread (1 1/16″ – 12)
Available without fittings, with AN-10 male fittings (reducer fitting), or AN-12 male fittings
