Description

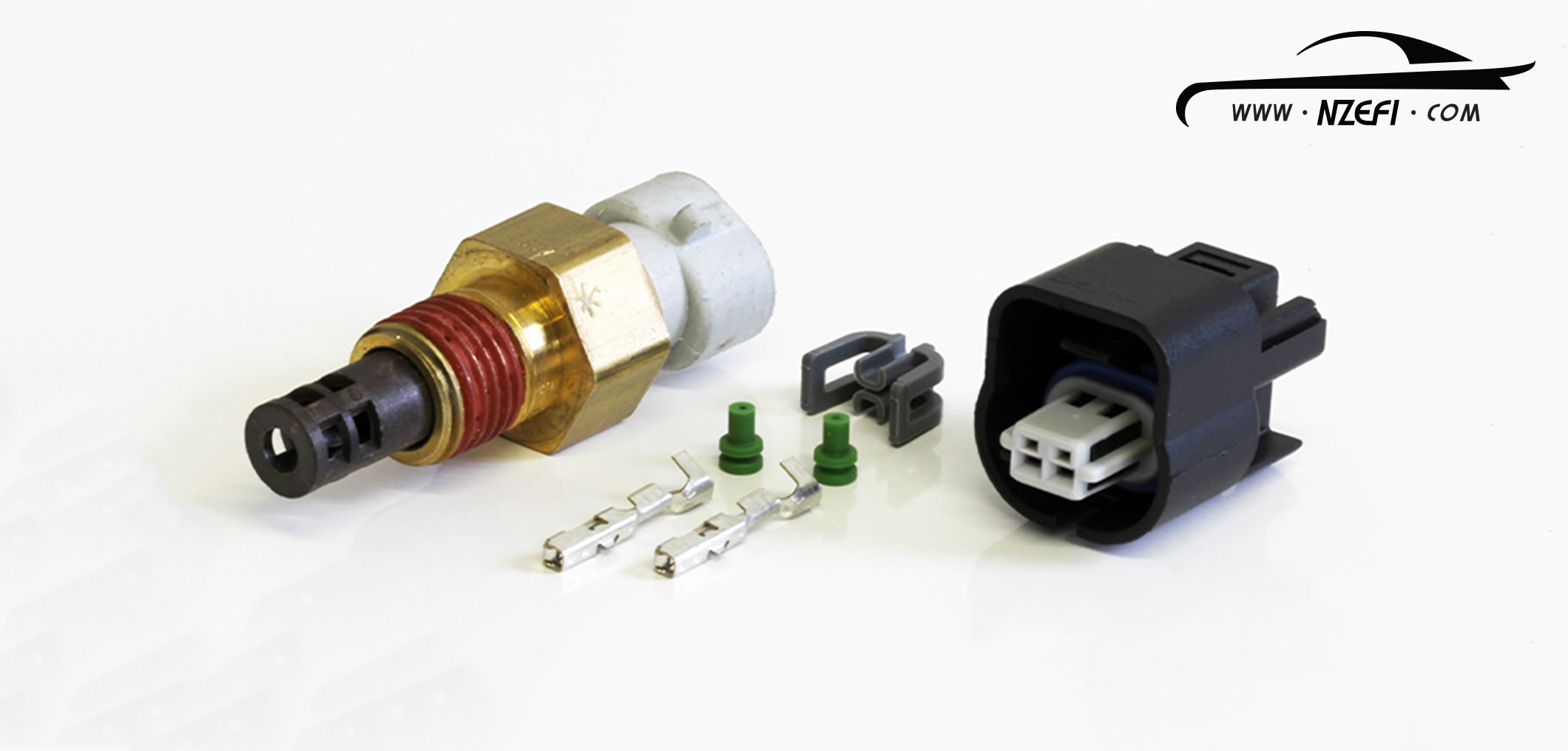

Intake Air Temp (IAT) Sensor with Connector – Fast response Delco GM type with M14 x 1.5 thread suitable for naturally aspirated or turbocharged applications.
Includes 2-pin connector. Also available with optional alloy weld-on boss.
Overall length of sensor (without connector) = 57 mm.
Operating temperature = -40°C to 135°C
Standard GM IAT calibration.
Calibration:
| T [°C] | R [Ω] |
| -40 | 99,326 |
| -35 | 71,332 |
| -30 | 51,791 |
| -25 | 37,994 |
| -20 | 28,146 |
| -15 | 21,044 |
| -10 | 15,873 |
| -5 | 12,073 |
| 0 | 9,256 |
| 5 | 7,153 |
| 10 | 5,572 |
| 15 | 4,373 |
| 20 | 3,457 |
| 25 | 2,752 |
| 30 | 2,205 |
| 35 | 1,778 |
| 40 | 1,443 |
| 45 | 1,177 |
| 50 | 965 |
| 55 | 796 |
| 60 | 660 |
| 65 | 551 |
| 70 | 462 |
| 75 | 389 |
| 80 | 329 |
| 85 | 279 |
| 90 | 238.1 |
| 95 | 203.9 |
| 100 | 175.3 |
| 105 | 151.3 |
| 110 | 131.0 |
| 115 | 113.9 |
| 120 | 99.4 |
| 125 | 87.0 |
| 130 | 76.4 |
| 135 | 67.3 |
| 140 | 59.4 |
Calibration values are accurate to ± 1.6°C
